When this task executes, it opens the scanner. The application user can use the scanner to scan a document or file. After the user closes the scanner, the “QR Code Scanner” task reloads the elements on the current page.
Steps to Configure
- On the Event Configuration page, find the Task panel.
- In the Task panel, search and find the QR Code Scanner task.
- Drag the QR Code Scanner task from the Task panel to the Execution panel.
- Under QR Code Scanner, a group of boxes appears.
- In the boxes, configure different properties as follows:
|Reference Name||In this box, enter the name of the task. Also, the system generates a reference name by default that you can change.||Yes|
|Output Data Type||Click this list and then select any of the following options:|
Aadhaar:- If you select this option, the task will only scan the aadhaar document.
Any:- If you select this option, the task will scan all other documents except the aadhaar document.
|Output Location||In this box, you can configure the location where the application stores the scanned data. To configure the output location:|

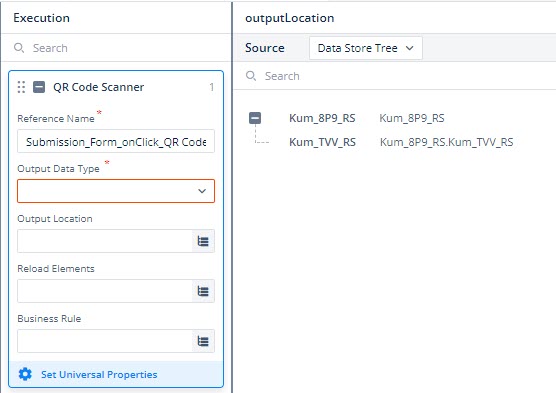

–> In the Output Location box, click the application tree icon (), and the right panel displays the Output Location area.
–> In the Output Location area, click the Source list and then select a data source where the application will store the scanned data.
–> The Output Location area displays the tree of different JSON paths in the selected data source.
–> In the tree, select a JSON path where the application will store the scanned data.
–> After you select the JSON path (JSON store), click Select, and the output location is successfully configured.
|Reload Elements||In this box, you configure the group of elements that the application will reload on the current page after the task scans the document. |
To configure the elements:
–> In the Reload Elements box, click the application tree icon (), and the right panel displays the Reload Element area.
–> In the Reload Element area, see the tree of different elements.
–> In the tree, select the elements that the application will reload after the task scans the document.
–> After you select the elements, click Select, and the selected elements are successfully configured.
|Business Rule((Optional Step)||In this box, you can configure a business rule to determine the execution of the QR Code Scanner task. If the user’s action satisfies the condition in the business rule, the QR Code Scanner task is executed.|
To configure the business rule:
–> In the Business Rule box, click the application tree icon (), and the Business Rule panel opens.
–> In the Business Rule panel, click Create New to configure a new business rule.
- After you configure the related properties, click Save to configure the QR Code Scanner task.
